Connecting to a PC with a Series 60

This page provides information on connecting a Series 60 phone to a PC.


Series 60 handsets include the Nokia N73 , Nokia N95, Nokia E61, Nokia 6630, Nokia 6680, Nokia N70, Nokia 3250, Nokia 7650, Nokia
3650
, Nokia 6600 , Siemens
SX1
, Nokia 3250, Nokia 3230, Nokia 6260,Nokia 7610, Panasonic x700, Sendo X and the Nokia N-gage

Connectivity FAQs

How
do I connect my Series 60 phone to my PC?

Series 60
handsets
can
connect to a PC in a number of different ways, depending on the model. Just about all Series 60 phones support Bluetooth, so this is often a good bet. Many support infrared, and some support connection to a PC via a USB cable.

Here is a
summary of how to use these three ways to connect your phone to your PC.

  • Belkin Bluetooth adapter
    Bluetooth connection. From the Series 60 handset, select ‘Connect
    | Bluetooth’. Turn Bluetooth ‘On’, then move to the second tab
    by moving the joystick to the right. This should show you all
    Bluetooth devices in range. If your PC isn’t shown, select ‘Options
    | New paired device’ and let the handset search for the PC connection.
    When the phone and PC are paired, use the Nokia Connectivity
    package to select the file you want to send to the handset. See
    below
    for help getting connected

    If your PC doesn’t support Bluetooth, then you can add it cheaply and easily using a USB
    Bluetooth adapter. We recommend the Belkin
    USB Bluetooth adapter
    available for around £15
    from amazon.co.uk.
    For details
    of Bluetooth and Series 60 handsets, see our Bluetooth
    page
    .

    USB infrared from Maplin

  • IR connection: From the handset, select ‘Connect | Infrared’ to turn the phone’s
    IR on. Line up the phone with the PC infrared port, and Windows
    should detect the handset. Once the PC and handset can see each
    other, you can either use Windows infrared software to send
    and receive files, or use the Connectivity Suite supplied with
    your handset to exchange files, configure or back up your handset.
    For more, see our IR section below.
    If you don’t have infrared, there are several IR adapters available,
    including the pictured ‘USB-IRDA Adapter’ from Maplin
    Electronics
    (Cat no: RV88V).

  • USB Cable – A number of the Nokia Series 60 phones that support USB can be connected to a PC using the DKU-2 USB cable – This includes the following models: 3250, 6630, 6680, 6681, 7710, 9300, 9500, N70 and N90.
    The DKU-2 lead can be purchased from MobileShop. Software drivers for the USB data lead can be found on Nokia’s support site. See our note below on cables

How
do I install software without IR or Bluetooth?

A SIS fileSoftware
for Symbian OS phones is normally supplied using a Symbian installation
file (with a .sis extension). This is a single file that contains
the components needed to get a piece of software installed and
ready to run. A SIS file can be run on a Symbian phone (e.g. from
the Inbox or via a file
manager
. It can also be run via the PC connectivity solution
that was supplied on the CD with the handset. Assuming you have
a SIS file on your PC/Mac (either downloaded from the Internet
or on a CD), the ways to install a SIS file onto your handset
are as follows:

  • Beaming
    – Beam the file to your handset from your PC using Bluetooth
    or IR.
    If
    you don’t currently have the ability to beam files to the handset
    via Bluetooth or infrared
    (either from another handheld device or from a PC), then you
    may wish to purchase an IRDA adapter for your PC (this means
    you’ll be able to install software, backup and synchronise data
    between phone and PC). See the section on IR and Bluetooth later
    on this page for more details.
  • Install
    via PC
    – Assuming you’ve installed the PC connectivity suite
    that was supplied with your phone, look for the "Install
    software" option. You’ll need to have the handset connected
    to the PC via serial, Bluetooth or infrared for this to work.
  • By
    email
    – The alternative, is to email the file that you’re
    trying to install, typically a SIS (Symbian installation file)
    to your own email account (provided it’s a POP or IMAP account,
    and then use your phone to log on to your email (details)
    and download the SIS file as an attachment into your phone’s
    Messaging Inbox.
  • Via
    memory card
    – There is another alternative for users of
    phones that take memory cards
    (such as the 3650 and 6600) by transferring the SIS file to
    the handset via the card slot and a PC MMC Memory
    card reader
    . Copy files onto an MMC from your PC, and then
    insert the MMC card into your handset. You’ll need to have a
    file manager on your handset to access the file from the memory
    card (file managers are available from Handango).
    Nokia 7650 does not take memory cards.
How
do I install ringtones?
7650 and
3650 supports playback of .mid or .wav files, and use of these file
formats as ringtones. To use such a sound file, beam or email the
file to your handset. It will then appear in the Messaging Inbox.
Open the message and select ‘Options | Save’. Then, from ‘Profiles’,
select a profile and set the ‘Ringing tone’ to the new file.
For more on ringtones, see the mobile phone FAQ
How
do share my pictures with others?

Once you have taken a
picture on your smartphone, there are three ways to get the files
from your phone to other people or computers:

  1. Sending an image to a PCYou
    can copy it to your PC with the Nokia software supplied on the
    CD. Depending on what you have connected to your computer, you
    can use Infrared or Bluetooth. Set your PC to receive files
    (using the IR or Bluetooth software supplied with your adapter),
    select the photo to send (from Images), then from the Options
    menu, select Send.
  2. You can use the Messaging
    application and email the picture to yourself (or a friend)
  3. Send the picture to
    another mobile using MMS. Costs of sending
    pictures by MMS differ depending on which network operator you’re
    with. Take a look at our MMS page for
    more.
Data
cables
Many visitors to this site
report that they’ve heard of data cables for serial or USB connection
between a PC and Nokia handsets (such as the 6600, 3650 and 7650).
Be warned that these cables are for use with special software for
configuring Nokia handsets using F-BUS or M2BUS. These can be used
for phone unlocking, firmware updates and for advanced programming
use. These cables can be found cheaply on

eBay

These are not intended for
use by consumers. They are not for use with the Nokia’s PC Suite,
and if you try to connect using one, you’ll find that the Nokia
PC Suite won’t find the phone.

If you’re looking to connect to your PC for picture/file transfer,
backup and software installation, look for a Bluetooth or IR adapter,
as per the section above.

One notable exception, is the Nokia 7610,
which has no IR, but comes with a USB cable.
For information on which Nokia devices support cable connection, see
Nokia’s site.

Alternative
connectivity software

Rather than the software
that came as standard with the phone, there’s a rather useful
third-party application called Oxygen
II
– This application supports Contacts, Calendar,
Messaging and file management.
For details of how this works, take a look at our Oxygen
page

Managing
files from your PC
File managerAs
well as Oxygen
II
(mentioned above), there is another useful PC-to-phone
application available for the Series 60 – Epocware’s PC
File Manager
. This allows you to access the files on your
phone from the PC – great if you want to copy files to a specific
location, rather than simply beaming them to your Inbox. You can
also use this application to backup your files, cut, copy and paste
files, and browse around the folders on your phone.
Problems connecting to a phone?

We offer some specific guidance below on Bluetooth and IR problems, but here are some general suggestions:

Try to work out which end is failing – PC or phone:

  • If PC, try reinstalling the connectivity software (or using another such as Oxygen), try using a different USB port, try on another PC, check no other software is ‘stealing’ connection to the port
  • If the phone, try: a soft reset (battery out), try with another PC, or more drastically, try a hard reset

Still having problems? see the advice below, or consider an alternative way of connecting. Also, try our Series
60 help forum

Text messages from a PC

You can use your PC to send and receive text messages via a Series 60 phone. Here are some options:

  • Use Oxygen, a PC package, to connect to your phone from a PC and transfer your Messaging inbox to your PC – More on Oxygen II.

For help on transferring existing text messages from your Series 60 phone to the PC, see our Series 60 Text FAQ

Sending
other file types to a PC

As above, Series 60 handsets
support "Send via" as a way of sending a file by infrared,
Bluetooth, e-mail, or as a multimedia message. This works fine
for recognised file types, but it could be that you want to copy
different types of files to your PC. To do this, you’ll need a
file manager that lets you browse through all of the folders
on your handset, and select a file to beam off. Try
Handy File,
which can be downloaded from
handango.com,
or you could use
PC
File Manager
(mentioned above) to do this via a PC connection.

Using
Infrared

Here
is a step-by-step guide for copying a file by infrared:

This
assumes you have a Windows PC with infrared hardware, such as a USB-IRDA Adaptor (from Maplin
Electronics
Cat no: RV88V).

  • From the handset,
    select ‘Connect’ from the menu, and select ‘Infrared’. This turns the
    phone’s IR on.
  • IR iconLine
    up the phone with the PC infrared port, and Windows should detect the
    handset. You should see an infrared icon in the system tray. If the
    PC doesn’t find the phone, you need to ensure that infrared is correctly
    configured on the PC via your PC’s control panel (The ‘Wireless link’
    icon).

Once
the PC and handset can see each other, you can either use Windows
infrared software to send and receive files, or use the Connectivity
Suite supplied with your handset to exchange files, configure or back
up your handset. We’ll assume you’re not using the PC Connectivity
Suite software, and just want to transfer a file.

Sending
to the PC


  • Find the file you want to transfer. If the file can’t be accessed
    directly, you may need a file manager (file managers are available
    from Handango).
  • Select
    the file (e.g. a photo from the Images application), and from
    the ‘Options’ menu, select ‘Send’, and ‘Via infrared’


Sending an image to a PC

  • Windows should start to see the transfer attempt, and should prompt
    you to receive the file. If you accept the file, the file will be
    copied to the location specified in the Windows Wireless Link software
    (or by right-clicking the System tray icon)

Sending
a file to the phone

  • With
    infrared enabled, right-click the Infrared icon on the system tray
    and select ‘Transfer files’
  • Select
    the file you want to transfer from the file browser, and press ‘Send’
  • File
    transfer should begin, and you should see a transfer dialog

Sending an image from a PC

  • Once
    received, you can find the file in the Messaging application Inbox.
    Select the file, and press ‘Options’ and ‘Open.

Setting
up the Nokia Connectivity Suite

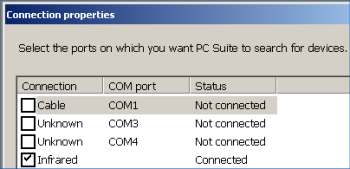

  • Mrouter iconThe
    Nokia PC Suite needs to be set to talk to the phone on the right COM
    port. To do this, right-click on the mRouter icon in the system tray
    next to the clock. Select ‘Properties, and a dialog box will pop up.
    Make sure that the Infrared box is ticked, and all the others are
    unticked.

IR connection



Problems connecting
over IR?

General:
Having problems? Some general things to look out for:

  • On
    the PC, go into Control panel, and check the settings for
    IR. Make sure you’re addressing the right com port and that
    file transfer is disabled.
  • Make sure that Infrared
    is still enabled on the handset (it has a quick timeout)

Nokia
PC Suite:
If you’re having problems connecting your phone
to the PC using Infrared with the Nokia Connectivity Suite,
start off simply, and try to get basic infrared communication
working using the software supplied in Windows, and the software/drivers
supplied with your infrared pod. If you can’t get basic communication
working between the phone and Windows, then chances are, you
won’t get the Nokia Connectivity Suite to work either. Try a
basic file exchange, as detailed above.

  • Make sure you have
    no other PC applications loaded that may be set to watch the
    infrared port (as these may conflict)
  • Got the latest version
    of the PC Suite? Get the latest from www.nokia.com
  • Mrouter iconThe
    PC must have a connection with the phone over IR for the Nokia
    Suite to work, so the system tray icon should show that an
    IR connection is established (icon of two IR windows beaming
    data)

If you’re having no
luck at all with the Nokia PC Suite, there is an alternative
– Oxygen II for Symbian. See our Oxygen
II page
.

If you’re
having problems, please ask in our Series
60 help forum


Using
Bluetooth

Belkin Bluetooth adapterIf
you want to connect your Series 60 handset to your PC via Bluetooth,
the phone has all the software you need built-in. Your PC will
require suitable Bluetooth hardware and software. If
your PC isn’t Bluetooth-enabled already, the best bet is to get
yourself a Bluetooth Adapter to plug into a spare USB port on
your PC. There are several Bluetooth adapters available – We recommend
the Belkin USB Bluetooth adapter available for around
£15 from amazon.co.uk. This comes with the required
Bluetooth software for your PC.

Here is
a step-by-step guide for copying a file via Bluetooth:

This assumes
you have a Windows PC with Bluetooth installed hardware, such as
a Belkin
USB Bluetooth adapter
(see above).

Before
you can make use of a Bluetooth connection between PC and phone,
you need to ‘pair’ them, as follows:

Pairing on a 7650

  • From
    the phone handset, Go to ‘Connect’ and select ‘Bluetooth’
  • From
    the first tab, select ‘Bluetooth’, and by pressing in the joystick,
    set Bluetooth to "on"
  • Move
    to the second tab, press "Options" and select "New paired device"
  • Select
    the device you want to pair with. You’ll be prompted to enter
    a passcode. If the device you’re connecting to already has a
    passcode, then you’ll be prompted to add this, otherwise you’ll
    need to create a passcode. Use a number like 1234 (you only
    need this once to get a pairing, so you don’t need to remember
    it)
  • You will
    be prompted to enter the passcode on the device you want to
    pair to (unless it already has a passcode). Enter the code that
    matches the one you entered on the phone, and "ok" it.
  • To allow
    the phone to always connect without prompting and pairing, you
    can set the device as "authorised". Do this by selecting the
    device, and from the options menu, select "Set as authorised".

Once
the PC and handset are paired, you can either use the software supplied
with your Bluetooth PC hardware to send and receive files, or use
the Connectivity Suite supplied with your handset to exchange files,
configure or back up your handset. We’ll assume you’re not using the
PC Connectivity Suite software, and just want to transfer a file:

Sending
to the PC


  • Find the file you want to transfer. If the file can’t be accessed
    directly, you may need a file manager (file managers are available
    from Handango).
  • Select
    the file (e.g. a photo from the Images application), and from
    the ‘Options’ menu, select ‘Send’, and ‘Via Bluetooth’. The
    handset will search for Bluetooth devices in range.

Selecting a Bluetooth device


  • Select the target PC, and the file transfer should begin. If
    you see "Sending failed", this is most commonly because
    the PC end is not set up correctly. Each PC Bluetooth adapter
    comes with different software and settings, so we can’t cover
    every option here – but things to check are that your Bluetooth
    software has "File Transfer" enabled, that Bluetooth
    is on, and that there is a default folder defined that received
    files are placed into.

Sending
a file to the phone

  • The
    PC is in control of file sending, and as each piece of Bluetooth
    hardware on a PC comes with different software, we can’t provide
    different step-by-step instructions for all software here. Sending
    a file is controlled from the PC, and you need to refer to the
    software supplied with your Bluetooth dongle for how to do this.
    You’ll need to select the file to send, and select from a list
    of Bluetooth devices in range. As long as the handset’s Bluetooth
    is set to "on" and the handset has been "paired"
    (see above), then the file should be transferred.
  • Once
    received, you can find the file in the Messaging application Inbox.
    Select the file, and press ‘Options’ and ‘Open.

Setting
up the Nokia Connectivity Suite (Bluetooth)


  • Connection is made using "Generic serial". Check your
    PC Bluetooth software to see which COM port it assigns to "Generic
    serial", and then from Nokia’s Connectivity Suite, make
    sure that the appropriate COM port is ticked. You’ll then need
    to go into your PC Bluetooth software, and establish Generic
    Serial link. When the link is established, the Nokia Connectivity
    Suite should change from "Disconnected" to "Connected"

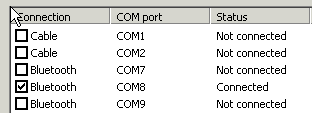

Setting the Bluetooth port

Problems connecting over Bluetooth?

Having
problems? Some general things to look out for:

  • Bluetooth control panelGeneral:
    Make sure that Bluetooth is enabled on the handset and
    on the PC.
  • PC can’t find
    the phone?
    – Make sure the phone is visible and Bluetooth
    is on (see screenshot)
  • Nokia
    PC Suite:
    If you’re having problems connecting your
    phone to the PC using Bluetooth with the Nokia Connectivity
    Suite, start off simply, and try to get basic Bluetooth
    communication working using the software supplied with your
    Bluetooth hardware. If you can’t get basic communication
    working between the phone and Windows, then chances are
    you won’t get the Nokia Connectivity Suite to work either.
    Try a basic file exchange, as detailed above.
  • Software:
    Got the latest version of the PC Suite? Get the latest from
    www.nokia.com. It may
    also be worth checking that the supplier of your Bluetooth
    dongle doesn’t have newer drivers on their website.
  • If you’re having
    no luck at all with the Nokia PC Suite, there is an alternative
    – Oxygen II for Symbian. See our Oxygen
    II page
    .

If
you’re having problems, please ask in our Series
60 help forum
. Provide full details of the problem, plus
any error messages.


Got a question
we’ve not answered? Please raise it in our Series
60 discussion forum
and we’ll try to get you an answer.

Leave a Reply Cancel reply

Your email address will not be published. Required fields are marked *



About FileSaveAs

Our team has been serving the online community since 2002. We offer a mix of tech information & answers to common questions.

Recent Comments

  • Neil John Aplin on Forum – Not Available
  • Shrimp on iTunes Library Updater killed by iTunes 11
  • adr on iTunes Library Updater killed by iTunes 11
  • Sinead MacCaughey on Tip for Faster Mobile Broadband
  • Jon on Disabling the mobile version of a website on an iPhone

Home | Site Info | Terms & Privacy Policy | Glossary | Contact FileSaveAs | Copyright © 2024 FileSaveAs >>

Powered by PressBook WordPress theme

This site uses cookies to enhance your browsing experience, serve personalised ads or content, and analyze our traffic. By clicking “Accept All”, you consent to our use of cookies, however you can select "Cookie Settings" to control your consent. View Terms & Privacy Policy
Cookie SettingsAccept All
Manage consent

Privacy Overview

This website uses cookies to improve your experience while you navigate through the website. Out of these, the cookies that are categorized as necessary are stored on your browser as they are essential for the working of basic functionalities of the website. We also use third-party cookies that help us analyze and understand how you use this website. These cookies will be stored in your browser only with your consent. You also have the option to opt-out of these cookies. But opting out of some of these cookies may affect your browsing experience.
Necessary
Always Enabled
Necessary cookies are absolutely essential for the website to function properly. These cookies ensure basic functionalities and security features of the website, anonymously.
CookieDurationDescription
cookielawinfo-checkbox-advertisement1 yearSet by the GDPR Cookie Consent plugin, this cookie is used to record the user consent for the cookies in the "Advertisement" category .
cookielawinfo-checkbox-analytics11 monthsThis cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Analytics".
cookielawinfo-checkbox-functional11 monthsThe cookie is set by GDPR cookie consent to record the user consent for the cookies in the category "Functional".
cookielawinfo-checkbox-necessary11 monthsThis cookie is set by GDPR Cookie Consent plugin. The cookies is used to store the user consent for the cookies in the category "Necessary".
cookielawinfo-checkbox-others11 monthsThis cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Other.
cookielawinfo-checkbox-performance11 monthsThis cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Performance".
CookieLawInfoConsent1 yearRecords the default button state of the corresponding category & the status of CCPA. It works only in coordination with the primary cookie.
viewed_cookie_policy11 monthsThe cookie is set by the GDPR Cookie Consent plugin and is used to store whether or not user has consented to the use of cookies. It does not store any personal data.
Functional
Functional cookies help to perform certain functionalities like sharing the content of the website on social media platforms, collect feedbacks, and other third-party features.
Performance
Performance cookies are used to understand and analyze the key performance indexes of the website which helps in delivering a better user experience for the visitors.
Analytics
Analytical cookies are used to understand how visitors interact with the website. These cookies help provide information on metrics the number of visitors, bounce rate, traffic source, etc.
CookieDurationDescription
_gasessionThe _ga cookie, installed by Google Analytics, calculates visitor, session and campaign data and also keeps track of site usage for the site's analytics report. The cookie stores information anonymously and assigns a randomly generated number to recognize unique visitors. For details of this cookie, go to <a href="https://policies.google.com/technologies/partner-sites">Google's Privacy & Terms site</a>
_gat_gtag_UA_*1 minuteSet by Google to distinguish users. For details of this cookie, go to <a href="https://policies.google.com/technologies/partner-sites">Google's Privacy & Terms site</a>
_gat_gtag_UA_226762_36sessionSet by Google to distinguish users. For details of this cookie, go to <a href="https://policies.google.com/technologies/partner-sites">Google's Privacy & Terms site</a>
_gidsessionInstalled by Google Analytics, _gid cookie stores information on how visitors use a website, while also creating an analytics report of the website's performance. Some of the data that are collected include the number of visitors, their source, and the pages they visit anonymously. For details of this cookie, go to <a href="https://policies.google.com/technologies/partner-sites">Google's Privacy & Terms site</a>
Advertisement
Advertisement cookies are used to provide visitors with relevant ads and marketing campaigns. These cookies track visitors across websites and collect information to provide customized ads.
Others
Other uncategorized cookies are those that are being analyzed and have not been classified into a category as yet.
SAVE & ACCEPT
Powered by CookieYes Logo
Go to mobile version
