TomTom Navigator for Windows Mobile

This page contains information on using the TomTom Navigator v6 and v7 route planning package on a Pocket PC or Windows Mobile Smartphone.

Offer from TomTom

On this page, we look at Version 6 and Version 7. For information on older versions of Navigator, see our Navigator 3 section. For information on other TomTom Products, like the Go and One, see our TomTom Sat Navs page.

Navigator BundleNavigator, from TomTom is a full navigation product designed for use with a Pocket PC or Windows Mobile handheld computer.

Navigator can be used with Windows Mobile devices that have a built-in GPS receiver, or on devices that can connect to a Bluetooth GPS receiver.

Navigator is available either as a software package, or as a bundle with a Bluetooth GPS receiver and car cradle.

Navigator is considerably cheaper than a dedicated in-car unit and just as powerful, and is a superb solution for those with an existing Pocket PC or Windows Mobile device.

May 2009 - New version: A new version, Navigator 7, was released by TomTom. This new version uses TomTom's Map Share technology, improved address selection and a number of other enhancements. Full details

TomTom 5
TomTom Navigator in Landscape mode



Features of TomTom Navigator include:

  • Fast and reliable route planning on highly detailed, up-to-date maps
  • Automatic, one-second recalculation when you move off the route
  • Automatic positioning, zooming, and guidance by GPS
  • Guidance by means of clear and timely verbal instructions, arrows and maps
  • Extensive lists of useful or interesting locations
  • Destination selection by means of: Favourites, Point of Interest, Clicking on map, or entering an address
  • Realtime travel information over the mobile phone network

Buying TomTom Navigator

TomTom Navigator 7 Box

TomTom Navigator 6 and Navigator 7 for Windows Mobile / Pocket PC is available in a number of forms:

  • Software plus PDA plus GPS receiver
  • Software plus Bluetooth receiver
  • Software-only (for those with existing GPS)

There are several online retailers we can recommend:

Can't find your product, or found a better online price? Let us know



TomTom Navigator v6 runs on a wide range of Pocket PC and Windows Mobile devices, including: iPAQ H4150, iPAQ H4350, iPAQ HW 6510, iPAQ HW 6515, iPAQ hw6910, iPAQ hw6915, iPAQ HX2190, iPAQ HX2490, iPAQ RX1950, iPAQ RZ1710, Orange SPV M1000, SPV M2000, SPV M3000 , Dell Axim X51, Axim X51V, o2 XDA Orbit, o2 XDA Exec, i-mate JAMin, T-Mobile MDA Compact, T-Mobile MDA III, and MDA Pro. For the full list of supported devices, see the TomTom site

TomTom Navigator v7 is designed for Windows Mobie 6.1 devices, including the following: HTC P3600, HTC P3470 , HTC Touch Cruise , HTC Touch Cruise II , HTC Touch HD , HTC Touch Pro , HTC TyTN II , O2 XDA Diamond Pro , O2 XDA Guide , O2 XDA Orbit 2 , Orange P4550 , Orange SPV M700 , SFR s300+ , Swisscom XPA1615 , T-Mobile MDA Vario III , T-Mobile MDA Vario IV and the Vodafone XPA1615. For the full list of supported devices, see the TomTom site



TomTom Go and One Prefer an all-in-one unit? Consider the TomTom Go range, or the new TomTom One. More details on our TomTom page.

Using TomTom Navigator

Here's a summary of the hardware we used to test TomTom Navigator v6:Pocket PC and GPS receiver

  1. Handheld Pocket PC PDA - For this article, we used the HP iPAQ rx3715, which is now no longer available. If you're looking for a device to use, consider one of the XDA family of Windows devices from o2 online, or try the o2 XDA Orbit, or a Windows Mobile from TotalPDA .
  2. GPS receiver - To work out where you are on the planet, you need a receiver that can be pointed at the open sky. You could pick a CompactFlash card receiver (if your PPC has a CF card slot) or a receiver that you connect to your Pocket PC via a cable, but we find the most elegant solution is to use a wireless Bluetooth GPS receiver.

    You can pick up GPS units at Amazon or Dabs.com. For more, see our GPS page



Using the TomTom Navigator software

TomTom Navigator Navigator is really designed to be used with live location data from a GPS unit - although it can be used stand-alone for route planning or map browsing if required.

The Navigator software is supplied on a CD, and when you install it, you install the core application, the GPS software, and you make a choice about the type of map data to install. The map data is pretty large (100Meg for the UK map), and you'll find that you probably need to install it onto a memory card.

Software and maps are installed via ActiveSync - a slow process with large maps (so to speed up map installation, you can use a memory card reader if you have one).

Navigator is a fully interactive co-driver. You plan a route based on your current position, obtained from the GPS receiver, and then enter a destination. You can do this by pointing to a location on the map, by entering the postal address (as well as street address, Navigator support house numbers and UK postcodes) that you want to go to, by picking a landmark or a saved location, or from the Pocket PC Contacts application list view. This makes selection of an address incredibly easy although searching for an address can be a little slow sometimes (not surprising really... there's a lot of streets in the UK, and to get a position for any UK address down to within a few feet, demonstrates the power of this application.)


As soon as you select Navigation Mode, things change - and you get to see a 3D view of where you are, which streets are near, and the direction you need to go in. Set out on your journey, and prepare to be impressed. As well as the clear route map, you get spoken voice prompts along the way - normally about 10-20 seconds before a junction, and a repeat when you get to the junction.

The messages are pretty accurate, and in our tests, very useful, with messages like "At the roundabout, take the second exit", or "at the end of the road, turn left then turn right". You also get warnings of which lane to be in, and when you're near your destination. Best of all, if you make a wrong turn, or know a better way, the software re-plans the journey on the fly without any need to touch the Pocket PC - and the planning is pretty intelligent (i.e. doesn't just tell you to turn around!).

While you're moving, the display gives you distance to the next turn, your current speed, arrival time, how long it'll be before you reach the destination, the name of the next road, details of the GPS signal you're receiving, and icons to indicate any overlays (such as petrol stations and railway stations) on the way.

The software really is an impressive piece of work - without sounding too gushing (no, we're not on TomTom's payroll), this really is the killer app for Windows Mobile (shame the software costs over £100 though). The application is fully customisable, with a whole load of settings to play with, such as a high-contrast night view (complete with stars on the horizon!), different voices (we're using John Cleese!), road/area avoidance, a stack of overlays, and warnings of London's Congestion Charge areas.

Navigator Map
Navigation mode

Controlling the GPS

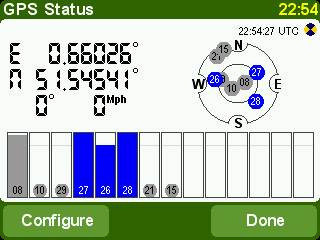

TomTom's GPS appThe TomTom Navigator software includes a GPS status screen that allows you to see information on the signal strength of the satellites you're receiving data from, and a display of your long and lat positions, speed and direction (see the screenshot to the right).

This applet also controls the settings for the GPS connectivity.

If you're a TomTom Navigator user, and you're having problems with your GPS connection, then this is probably the screen where you'll need to look - see our FAQ below for some help with Bluetooth GPS connectivity issues.



Real-time Traffic information

TomTom TrafficTomTom Navigator makes use of a real-time travel information service. In the UK, the travel data is supplied by ITIS.

Traffic information is downloaded to the Pocket PC via a mobile phone with a GPRS data service. If your Pocket PC has a built-in phone (e.g. the o2 XDA), you already have a Pocket PC capable of using GPRS for Navigator. If not, you may be able to connect your Pocket PC to a mobile phone using either Bluetooth or Infrared. This site carries details of how to connect your PPC to the Internet

The phone connects to the TomTom service over the Internet, and downloads information about traffic problems straight into the device, which uses the information to update your route. There is a subscription charge for using this service. More on our TomTom Traffic page.

In practice, the service works rather well, although the quality of the real-time traffic data sometimes lets it down.

For more on real-time road information, see our Travel page

Speed Cameras

TomTom Navigator CamerasIf you're using Navigator on the move, you might want to consider adding a database of UK speed cameras - TomTom offer access to camera databases, if you subscribe to their service, but there's a cheaper alternative... the PocketGPS Safety Camera Database.

The database that they provide is intended to be used with TomTom's Navigator application. The database gives longitude and latitude co-ordinates for the cameras, and includes GATSO cameras, redlight cameras, and the locations of common mobile speed camera locations.

The database has to be copied to the map folder on the Pocket PC, and then you can add them to the map as an overlay (referred to as a POI - Point of Interest). You'll be able to see an icon of a speed camera in Navigator view. Below are some instructions for installing and using the database.

TomTom Navigator 5 and 6 have built-in support for speed camera notification, and for users of TomTom v2 or v3, there's a free application called CheckPOInt, that can alert you audibly of an upcoming camera, by playing a WAV file of your choice when you near a camera. See our Navigator 3 page for help on using CheckPOInt.

Frequently asked questions

Extra voices Help with installing voices on TomTom 5

TomTom voicesThe TomTom CD should come with a number of different voice files, which can be installed from the CD. TomTom sell a number of other voices on their site, which you can purchase, download, then install. The TomTom software has an option to let you switch between installed voices. Voices need to be installed into a folder called '\voices\ at the root of the Internal drive. If you're having problems getting the voices to be recognised by TomTom, try:

  • Go to File Explorer
  • Press the folder selector underneath the start icon
  • Select "My device" on your internal drive.
  • If there isn't a folder called 'voices in the list', press 'Edit > New folder', and create one.
  • Open the voices folder. In there you'll need to place the new TomTom voice files. (As an example, we've installed John Cleese, and our 'voices' folder contains data97.bmp, data97.vif and data97.chk)
Bluetooth problems

If you're finding that your Pocket PC can't talk to the GPS receiver over Bluetooth, here are a few things to try:

TomTom GPSFrom your Pocket PC's Bluetooth software (commonly Settings > Connections), make sure Bluetooth is enabled, and use the Bluetooth Manager to connect to the Bluetooth receiver. You should then ensure that the device is correctly paired and connected. On our iPaq, this is represented by two green arrows. For some general help on pairing, see our Bluetooth page

Go into TomTom 5, call up the menu, select "Change preferences", then select "Show GPS status". If TomTom is able to connect to the GPS device, then you should get some useful information, such as "No valid GPS signal" or "No GPS device"

A solid lockIf you get "No Valid GPS Signal", then chances are the device is connected, but can't get a fix. Check if there's clear line-of-sight to the sky - no trees / concrete / metal above you. Also note that if you're moving, it's harder for the GPS receiver to get a fix. Stay in one place, and watch the bars, as this provides feedback on which satellites it can see, and how solid the lock is. You need at least 3 blue bars to get a lock on your position

If you get "No GPS device", then either your Pocket PC isn't connected by Bluetooth, or TomTom can see the connection, but doesn't have the appropriate settings. To resolve this, from the GPS Status page, select "Configure". Then, scroll to the device that most closely matches yours, and press 'Select'. Then choose the appropriate connection. We find that "Bluetooth Serial Port 6" works best with our Pretec GPS receiver. If you're still having problems, try experimenting with other device types and serial ports until you find something that works (perhaps COM3)

Still having problems? It could be that TomTom can't see the device as the com port is already in use. We've discovered that in some cases you may need to disable Infrared first, as this has been known to "steal" the COM port setting. To do this, select Start > Settings > Connections > Beam > "Receive all incoming beams". Also, try a soft reset of your Pocket PC, to free up a locked COM port.

Installing maps

Assuming you have the application installed on your Pocket PC or Windows Mobile device, you can either install maps direct onto your device, or onto a memory card. Here's a summary of how to install UK maps from the TomTom 5 Europe disk set:

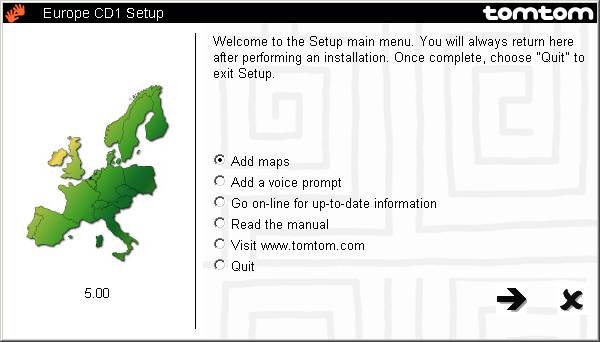

  • Start the Setup application on the CD that contains the maps
  • Select "Add Maps" (screenshot)
  • As you step through, there's an option to install to Pocket PC, or "Advanced" (screenshot) - If you select "Advanced, there's an option to install to a memory card via a memory card reader, or to a folder on the PC
    TomTom SD install

If, when you start TomTom Navigator 5, you see a message about maps not being found, you've probably not installed the right files, or you've installed them to the wrong folder. For the UK maps, these should be in a folder called \Great_Britain-Map\ - Below is a screenshot of where the UK maps should be, when installed onto a memory card:

TomTom Install on SD card

Extra voices

TomTom products allow you to use different voice files to switch from the standard voice, to something a little more fun. The TomTom CD comes with a number of different voice files, but there are a couple of other places to pick up some new voices to heighten your driving pleasure.

There's a small selection of voices that can be purchased TomTom's site, including an excellent John Cleese.
As well as TomTom's own site, we recommend SatNav Voices as a top place to pick up a new voice for your TomTom - their range includes
White Van Man, The Voice of God, a Geeza, Manuel from Barcelona, and the rather bizarre Cat Nav, plus a whole lot more. Our favourite? Sexy Sabrina... for those long boring journeys... "would you mind just turning to the left for me, sweetie?"

Once downloaded, voices need to be installed into a folder called '\voices\ at the root of the drive that contains your TomTom software.

GPS Status and info GPS statusFor those interested in all things GPS, note that the Configure GPS option available from the menu provides you with a summary of the GPS signal that's being received - this shows longitude & latitude, current speed and direction, plus the reference number and signal strength of each GPS satellite that's found. Click on the image for a full-screen picture of the GPS screen.
Setting up speed cameras

Some basic instructions on how to install the UK Camera database onto a Pocket PC running TomTom Navigator v5

  1. TomTom POI settingsDownload the latest version of the database from www.PocketGPSWorld.com/uksafetycameras.php
  2. Unzip all of the files into a folder (If you need an unzip program, use Winzip)
  3. There are lots of files in the ZIP file, which you may want to experiment with later, but we're going to start with the basics. You need to copy the following files from the ZIP file onto the Pocket PC. These need to be manually copied to the same Pocket PC folder as the one that holds the Navigator map files (which are called cline, cnode, cname, etc). To copy files, from the PC, connect with Activesync, open My Computer > Mobile Device, then drag the following files into the correct directory:
    - pocketgps_uk_gatso.ov2
    - pocketgps_uk_gatso.bmp
    - pocketgps_uk_redlight.ov2
    - pocketgps_uk_redlight.bmp
    - pocketgps_uk_mobile.ov2
    - pocketgps_uk_mobile.bmp
  4. Now, on the Pocket PC, start Navigator, go to the menu, and select "Manage POI"
  5. Select "Enable / Disable POI" and select the speed camera POIs you've just copied. Then, press "Done"
  6. You may want to set "Warn when near POI" to get an audible notification when you're approaching a camera
  7. When you next view a map or use Navigate, you should see the cameras

Note - We have a page dedicated to installing safety cameras
- See our TomTom Cameras page
